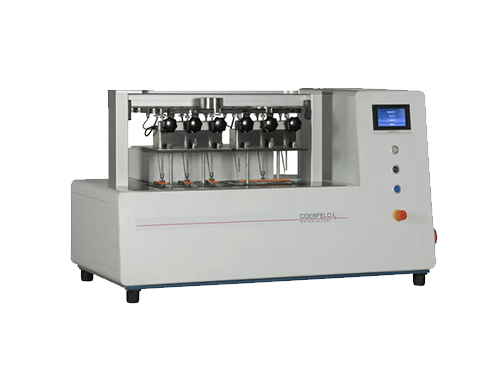

VST- HDT Standard 6
Release Time：2024-10-15 13:03:37
View：517
Compact Tabe-Top Unit with 6 Stations for industrial HDT and VST measurement
The standard VST/ HDT is partially automated with a motorized measuring head lifting platform and weight support. It is designed for industrial operation.
The device is used for standard-compliant measurement of VST (Vicat Softening Temperature) and HDT (Heat Distortion Temperature) according to international standards. It is available in two versions with 3 (Standard 3) or 6 (Standard 6) measuring stations. For the first time, it is possible to measure the HDT of composites according to ISO 75-3 using transverse supports.
High-temperature-stable silicone oil is used as the heat transfer medium. An integrated exhaust ensures that oil vapors are extracted in a controlled manner and optionally cleaned with a filter.
The optimized oil bath achieves even better oil distribution and an even more precise heating gradient. The heating gradient is checked and documented with each measurement at the 6-minute interval required by the standard. By reducing the amount of oil at the same time, even faster cooling times can be achieved. A high-performance cooling can also be optionally added for even faster cooling and higher device throughput.
The standard VST/ HDT is partially automated with a motorized measuring head lifting platform and weight support. It is designed for industrial operation.
The device is used for standard-compliant measurement of VST (Vicat Softening Temperature) and HDT (Heat Distortion Temperature) according to international standards. It is available in two versions with 3 (Standard 3) or 6 (Standard 6) measuring stations. For the first time, it is possible to measure the HDT of composites according to ISO 75-3 using transverse supports.
High-temperature-stable silicone oil is used as the heat transfer medium. An integrated exhaust ensures that oil vapors are extracted in a controlled manner and optionally cleaned with a filter.
The optimized oil bath achieves even better oil distribution and an even more precise heating gradient. The heating gradient is checked and documented with each measurement at the 6-minute interval required by the standard. By reducing the amount of oil at the same time, even faster cooling times can be achieved. A high-performance cooling can also be optionally added for even faster cooling and higher device throughput.
Operation is optionally via the integrated touch panel or the associated Windows software. In addition to finished reports, a complete raw data export in csv format is available, as is typical for Coesfeld.
Features
Automatic weight application via motorized lift
Free and intuitive Win-Software (LIMS-Ready)
Large bath opening for easy service and cleaning access
Ready for composites acc. ISO 75-3
Integrated oil-fume exhaust
Specification
|
Temperature |
20 to 300 °C (optional up to +350 °C) |
|
Travel Resolution |
0,001 mm |
|
Bath volume |
11,5 l |
|
Cooling Time (300 °C -> RT) |
~ 40 min (optional <15 min) |
|
Dimensions (H x D x W) |
790 x 560 x 1040 mm |
|
Weight |
70 kg |
|
Mains |
230 V, 50 Hz, 3200 W |
