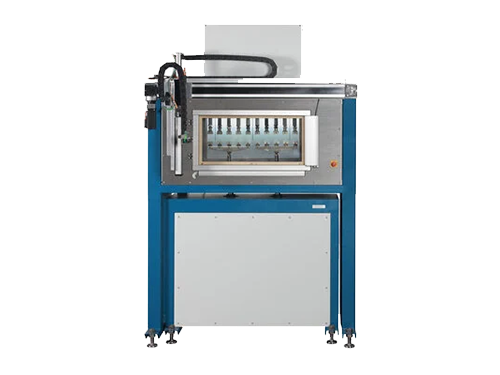

Dynamic tear and fatigue testing to analyze crack growth and fatigue properties for material characterization and lifetime prediction . The system is fully PC controlled and offers wide range of dynamic applications incl. variable dynamic loading (sine, pulse,…) and user sequence programming. The single station machine provides stress and strain controlled loading for material and component testing. The multi station machines work acc. to System BAYER with dynamic stroke control at individual stress level control per station.

Features

Scaleable from 1 up to 10 measuring stations
Intelligent measuring procedure and data evaluation for online set-up of Thomas-Plot
Multi station system with voltage regulation per station
Online crack measurement and evaluation

Specification

Measuring stations	1 to 10
Independant dynamic drives	Up to 3
Force per stations	500 N
Stroke	Up to 50 mm
Frequency	Up to 50 Hz
Temperature	-20 °C to + 180 °C
Mains	3~400 V N/PE, 50/60 Hz
