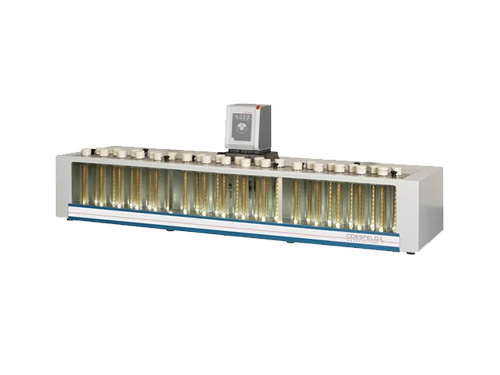

The ESCR tester comprises a temperature bath with a test tube racks holding up to 10/50 test tubes. Each test tube has space for 10 specimens. For sample preparation, a notching unit with natching blade is supplied. The notched specimens are pre-stressed using the bending clamp and inserted into the specimen holder using the transfer tool. Up to 10 test tubes are placed in a rack, which can be removed from the ESCR test bath for sample preparation and inserted into the bath for testing. The 50 Station unit can hold up to 5 sample racks and can thus be configured as a 10/20/30/40/50 station unit. 30 samples can be viewed through the front window and up to 50 can be tested simultaneously.

Features

Device for 10 or up to 50 Stations
Accessories for preparing the samples included

Specification

Temperature Range	RT + 10 °C to +150 °C
Temperature Consistency	± 0.1 °C
Bath capacity	24 l (10 stations) / 72 l (50 stations)
Dimensions (W x D x H)	526 x 440 x 476 mm (10 stations) / 1331 x 440 x 476 mm (50 stations)
Weight	35 kg empty (10 stations) / 75 kg empty (50 Stations)
Mains	230 V, 50 Hz (alternative mains connection on request)
