VST/HDT Compact 3/6 stations

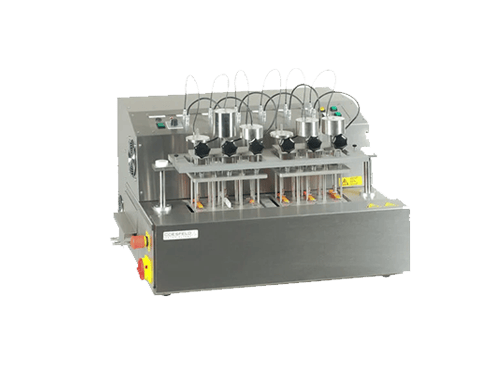

Compact VICAT and HDT device with 3 or 6 measuring stations
The Compact VST / HDT is a compact desktop device for the industrial measurement of the VICAT softening and HDT heat deflection temperature / heat distortion temperature). The device has a comfortable motorized lifting platform for the measurement setup. The measurement data acquisition and data evaluation takes place via PC with the Coesfeld WIN software.
The Compact VST / HDT is a compact desktop device for the industrial measurement of the VICAT softening and HDT heat deflection temperature / heat distortion temperature). The device has a comfortable motorized lifting platform for the measurement setup. The measurement data acquisition and data evaluation takes place via PC with the Coesfeld WIN software.
The optional connection of our high-performance oil cooling enables the device to be brought back from a temperature of +300 ° C to the starting temperature of +23 ° C within just 25 minutes after the measurement. This means that the system can also be used efficiently for series testing.
Features
Compact, cost-effective device with yet full industrial functionality
Scaleable with 3 or 6 stations and high-performance cooling unit
Intuitive software (LIMS connection possible)
Specification
|
Temperature |
+30 °C to +300°C |
|
Digital displacement transducer, resolution |
0.001 mm |
|
Cooling connection |
1/2 '' |
|
Dimensions 3 station device (W x D x H) |
600x 600 x 470 mm |
|
Dimensions 6 station device (W x D x H) |
720 x 660 x 470 mm |
|
Weight |
Approx. 60 kg |
|
Mains |
230 V, 50/60 Hz, 3200 VA |
