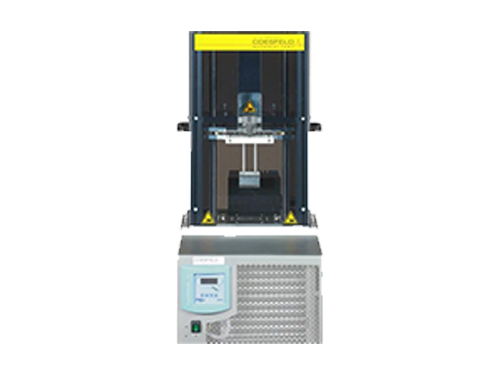

Brittleness Temperature Tester
Determination of the temperature at which plastics, which are not rigid at normal ambient temperature, exhibit brittle failure under specified impact conditions. The unit works with a continuous running, ozone friendly compressor and an electrical heater, which controls the temperature.
Features:
Ozone-friendly compressor
Precise temperature control
Clamping fixture with floating
guard
Constant speed at impact
Specification:
Temperature
-80 °C to ambient
Drop speed
2 m/s
Dimensions (H x B x D)
Approx. 1.470 x 460 x 810 mm
Weight
Approx. 120 kg
Mains
230 V / 50 Hz (optional: 230 V/60 Hz or 115 V/60 Hz)
