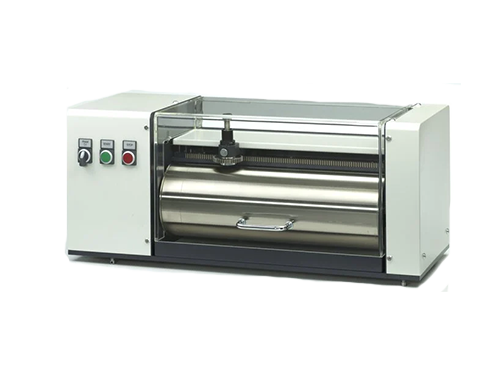

DIN Abrader
Abrasion Tester
Determination of the resistance of elastomers in regard to material loss due to abrasion. Abrasion tests are performed on materials which are subject to wear and tear during their working life, e.g . tires, conveyor and drive belts, shoe soles.
Features
For tyres, belts, conveyor belts etc.
Weight for 2.5 N included (extendable)
Suction connection, reference elastomers available
ISO 17025 DAkkS-calibration certificate (optional)
Specification
|
Sample loading force |
2,5 | 5 | 7,5 | 10 N (expendable to 12,5 | 15 | 17,5 | 20 N) |
|
Maximum sample gripping length |
13 mm |
|
Abrasion speed of the drum |
0.32 m/s |
|
Dimensions (W x D x H) |
760 x 360 x 320 mm |
|
Weight |
50 kg |
|
Mains |
100-240 VAC 50/60 Hz, 1A |
