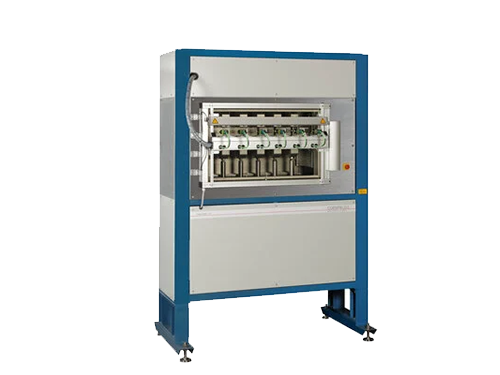

Instrumented multi-station system for motor-driven creep and relaxation measurement
The measurement of creep behavior provides data for design purposes as well as for research and development. The test is performed on standardized test specimens under specified conditions, such as pretreatment, temperature and humidity. DIN EN ISO 899 or ASTM D 2990 describe the creep test on plastics for the tensile test and the flexure test. Electromotive systems offer convenience, flexibility and precision. Creep and relaxation measurement as well as alternating cycles can be programmed.

All Systems:
With 3 to 10 stations
With optional temperature chamber or humidity control

With optional video extensometer for precise, non-contact strain measurement

Features

Easy Handling
Reproducible Load Application
Programmable Load Cycles
Optional Temperature Chamber or Humidity Control
Optional Video Extensometer for precise, non-contact strain measurement

Specification

Maximal Test Load	20 kN
Load Application	Electro-mechanical
Programmable Load Cycles	Possible
Travel	200 mm
Travel Resolution	0.025 µm
Froce Resolution	0.04 % FN
Temperature Control	-40 °C to +250 °C
Temperature Consistency	± 1 K
Dimensions (W x D x H)	800 x 1040 1820 x 2100 mm
Weight	1,3 t to 1,8 t
Mains	3~400 V N/PE
