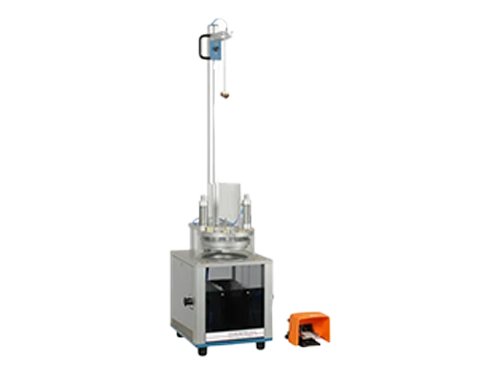

Dart Drop Tester
Free falling Dart Test with 660 and 1500 mm Drop height
The Dart Drop Tester is for determining the penetration energy of foils with the so-called staircase method. Both drop weight and drop height can be varied.
The device is purely pneumatically operated. The foot control allows the user to have both hands free for specimen clamping. A handle guard ensures that only the specimen is clamped cleanly. The drop is released by means of a two-hand control.
The Dart Drop Tester is for determining the penetration energy of foils with the so-called staircase method. Both drop weight and drop height can be varied.
The device is purely pneumatically operated. The foot control allows the user to have both hands free for specimen clamping. A handle guard ensures that only the specimen is clamped cleanly. The drop is released by means of a two-hand control.
The instrument is supplied with a slim Coesfeld WIN software, which can be used directly on the instrument on a tablet computer, for example. The software guides the user through the test sequence and immediately provides a standard-compliant report.
Features
Software-guided test execution and data evaluation
Available as table-top or floor-standing model
Easy change between method A and B with rotating drop tower
Safety feature for clamping and collision protection
Practical weight storage directly on the device
Large test room for stretch films
Specification
|
Drop Height |
660 or 1500 mm |
|
Drop Weight |
50 g to 3000 g |
|
Dimensions (D x W x H) |
460 x 330 x 1340 or 2170 mm |
|
Weight |
approx. 50 kg |
|
Compressed Air Supply |
6 - 10 bar |
