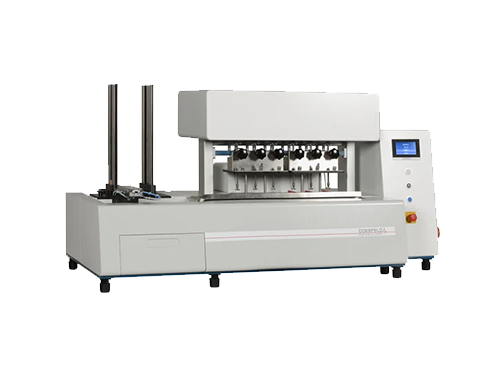

HDT Automat 6
Fully automated HDT tester with sample feeder
The HDT fully automatic machine not only has an automatic sample feeding system, but also a unique, step-free, automatic load application. The weight is automatically selected and applied according to the method and sample geometry. The device is used for standard-compliant measurement of the HDT (Heat Distortion Temperature) according to international standards in 24/7 continuous operation. It has 6 measuring stations that are operated in parallel with the same or different measuring jobs.
High-temperature-stable silicone oil is used as the heat transfer medium. An integrated, exhaust nsures that oil vapors are extracted in a controlled manner and optionally cleaned with a filter. The optimized oil bath achieves even better oil distribution and an even more precise heating gradient. The heating gradient is checked and documented with each measurement at the 6-minute interval required by the standard. By reducing the amount of oil at the same time, even faster cooling times can be achieved. The tried-and-tested high-performance cooling can also be optionally added for even faster cooling and higher device throughput.
Operation is optionally via the integrated touch panel or the associated Windows software. In addition to finished reports, a complete raw data export in csv format is available, as is typical for Coesfeld.
The HDT fully automatic machine not only has an automatic sample feeding system, but also a unique, step-free, automatic load application. The weight is automatically selected and applied according to the method and sample geometry. The device is used for standard-compliant measurement of the HDT (Heat Distortion Temperature) according to international standards in 24/7 continuous operation. It has 6 measuring stations that are operated in parallel with the same or different measuring jobs.
High-temperature-stable silicone oil is used as the heat transfer medium. An integrated, exhaust nsures that oil vapors are extracted in a controlled manner and optionally cleaned with a filter. The optimized oil bath achieves even better oil distribution and an even more precise heating gradient. The heating gradient is checked and documented with each measurement at the 6-minute interval required by the standard. By reducing the amount of oil at the same time, even faster cooling times can be achieved. The tried-and-tested high-performance cooling can also be optionally added for even faster cooling and higher device throughput.
Operation is optionally via the integrated touch panel or the associated Windows software. In addition to finished reports, a complete raw data export in csv format is available, as is typical for Coesfeld.
Features
Auto Weight Selection and Application
Auto Sample Feeding
Integrated Oil-Fume Exhaust
Large Bath Opening for Service and Cleaning Acess
Optional: Fast Cooling in < 15 min
Specification
|
Temperature |
20 to300 °C (optional up to 350°C) |
|
Travel Resolution |
0.001 mm |
|
Bathvolume |
11.5 Liter |
|
Cooling Time (300 °C -> RT) |
~40 min (optional <15 min) |
|
Dimensions (H x D x W) |
1.000 x 736 x 1.600 mm |
|
Weight |
150 kg |
|
Mains |
230 V, 50 Hz, 3200 W |
