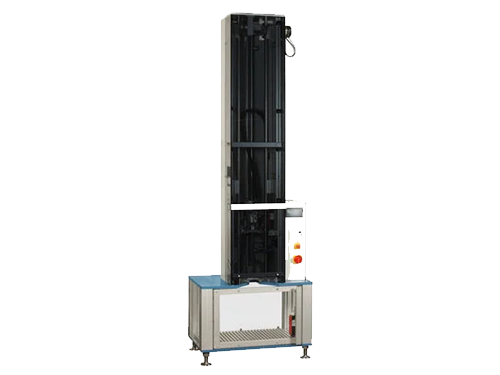

The IIT 180 is a multi-functional drop tower with automatic drop height travel and drop release. Optionally, the system can be extended and adapted to the required application by adding automatic specimen fixation, anti rebound catch system, speed measurement and high dynamic force measurement. With guided dart slides, semi-automated dart drop testing according to ISO 7765-1 and ASTM D1709 can also be realized.

Features

Multipurpose due to modular machine design
Quick Test Execution
Touch-Panel Operation

Specification

Drop Height	Up to 2000 mm
Impact Energy	Up to 180 J
Impact Speed	Up to 6 m/s
Dimensions (W x D x H)	Approx. 500 x 500 x 2600 mm
Weight	Approx. 300 kg
Compressed Air Supply	5-10 bar
Mains	230 V, 50/60 Hz, 500 VA
