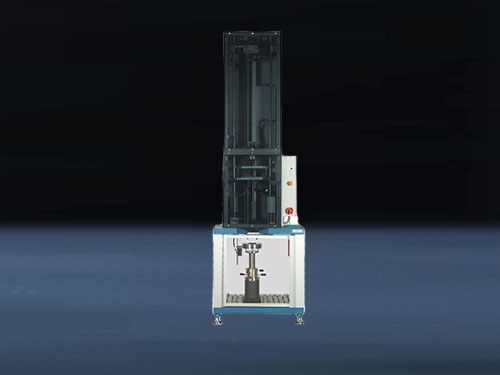

Instrumented Impact Tester
Puncture and impact resistance measurement up to 2000 Joule
The IIT 2000 is an Instrumented Impact Tester with drop weight, impact velocity, and high dynamic impact force profile measurement. Optional optical measurement of the puncture distance or rebound height is also possible.
The Impact Tester is designed for multi-axial impact testing according to DIN EN ISO 6603-2, DIN EN ISO 7765-2 and ASTM D 3763. Due to the modular machine concept, the device can be extended by acceleration units for puncture testing for the automotive industry, such as GMW 14867. The test setup can also be equipped for various high-speed tests, such as the impact tensile test DIN EN ISO 8256, ASTM D1822, the peel-wedge test according to ISO 11343 or following the classical pendulum impact tests such as Charpy DIN EN ISO 179, ASTM D6110, Izod DIN EN ISO 180, ASTM D256, ASTM D4508 up to part and component tests.
The IIT 2000 is an Instrumented Impact Tester with drop weight, impact velocity, and high dynamic impact force profile measurement. Optional optical measurement of the puncture distance or rebound height is also possible.
The Impact Tester is designed for multi-axial impact testing according to DIN EN ISO 6603-2, DIN EN ISO 7765-2 and ASTM D 3763. Due to the modular machine concept, the device can be extended by acceleration units for puncture testing for the automotive industry, such as GMW 14867. The test setup can also be equipped for various high-speed tests, such as the impact tensile test DIN EN ISO 8256, ASTM D1822, the peel-wedge test according to ISO 11343 or following the classical pendulum impact tests such as Charpy DIN EN ISO 179, ASTM D6110, Izod DIN EN ISO 180, ASTM D256, ASTM D4508 up to part and component tests.
Additional equipment such as automatic specimen fixation, dart lubrication, anti-rebound catch system, variable drop weights, impactor geometries and test setups are available to match international standards or we can design and manufacture the setup to your individual requirements.
Features
Multipurpose due to modular machine design
Intuitive software with automatic data evaluation
Quick Test Execution in < 5 Seconds
High Test Energies up to 2000 Joule
Lossless scalable force measurement
Specification
|
Drop Height |
Up to 1300 mm |
|
Impact Engery |
Up to 2000 J |
|
Impact Speed |
Up to 20 m/s |
|
Drop Weight |
Up to 80 kg |
|
Tempering Chamber |
-70 to +150 °C |
|
Dimensions (W x D x H) |
Approx. 1000 x 1000 x 2600 mm |
|
Weight |
Approx. 750 kg |
|
Compressed Air Supply |
5-10 bar |
|
Mains |
230 V, 50/60 Hz, 500 VA |
